Wall-Hung Wash Basins for Small HDB & BTO Bathrooms

Renovating a small HDB or BTO bathroom in Singapore often comes down to a battle for floor space. With compact master ensuite layouts and narrow common toilets, every millimetre counts. Standard vanity cabinets can quickly make a 3-room or 4-room HDB toilet feel boxed in, dark, and difficult to clean.

If you want to keep your bathroom feeling light, spacious, and easy to maintain, a wall-hung wash basin is often the smartest layout choice. By mounting directly to the wall and floating above the floor, this space-saving design removes unnecessary bulk without sacrificing practical washing area.

This guide covers why wall-mounted basins work so well in compact Singapore homes, key installation factors to check with your contractor, and how to pick the perfect size for your floor plan.

(For a full overview comparing all mounting styles, see our core guide How to Choose a Bathroom Wash Basin in Singapore.)

Why a wall-hung basin suits small Singapore bathrooms

1. Frees up precious floor space

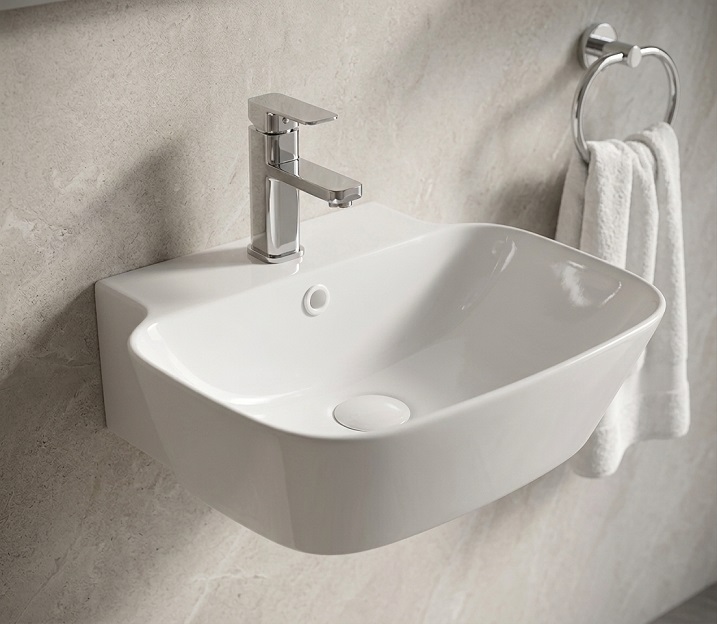

In a compact BTO toilet, fitting a full-depth cabinet near the shower area can block shower screens or interfere with door clearance. A wall-hung unit leaves the floor area completely open underneath, instantly giving small bathrooms a roomier, more relaxed feel.

2. Effortless cleaning around the base

Traditional floor-standing vanities create narrow gaps between the cabinet side and the wall, trapping dust, hair, and damp grime. With a floating basin, you can mop and scrub your floor tiles straight up to the wall trap without crouching or navigating awkward cabinet legs.

3. Makes the bathroom feel visually open

When the floor tiles run continuously from wall to wall without interruption, the human eye perceives the room as significantly larger. The open space underneath allows light to bounce across the floor, making naturally dark or windowless toilets feel brighter.

How wall-hung basins are fixed: wall types & support

Because a wall-hung basin hangs entirely from wall bolts, structural support is essential for safety and long-term stability.

Concrete vs partition walls

• Solid concrete / brick walls: most original HDB bathroom walls are solid concrete or structural brickwork. Installing heavy ceramic basins directly into these walls with heavy-duty anchor bolts provides maximum stability.
• Hollow partition / drywalls: if you are building a new partition wall during a layout reconfiguration, standard drywall cannot support a heavy ceramic basin on its own.

Adding backing or concealed frames

If mounting onto a hollow partition wall, your contractor must install internal plywood backing or a structural steel frame behind the board before tiling. This gives the mounting bolts a solid timber or metal core to anchor into.

Important note for homeowners: always confirm your wall type and mounting plan with your contractor or plumber before tiling begins. Adding timber backing or checking wall structure early avoids expensive retiling or structural fixes later.

Choosing the right size for your space

Selecting the correct basin dimensions ensures comfortable handwashing while maintaining clear walkways around the toilet and shower area.

Compact basins (340mm to 450mm width)

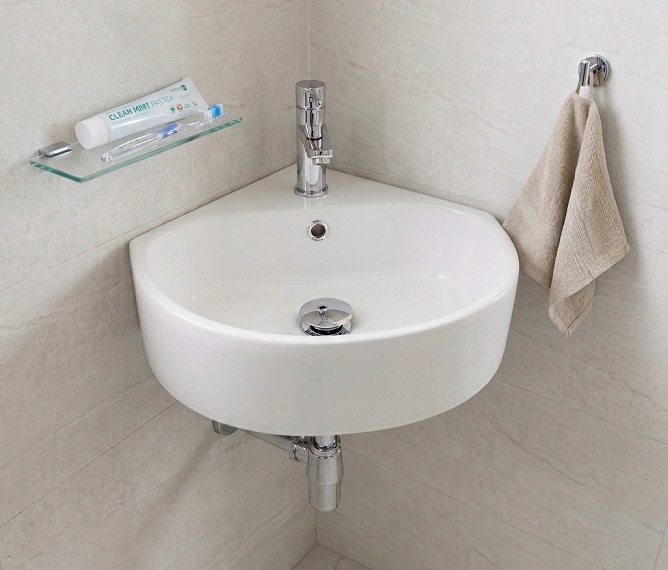

• Best for: powder rooms, ultra-narrow common toilets, or tight corner installations.
• Why choose it: these compact models project only a short distance from the wall, ensuring they do not obstruct door swings or walking paths. They are designed primarily for quick handwashing and guest use.

Standard basins (470mm to 535mm width)

• Best for: main HDB/BTO bathrooms and daily family use.
• Why choose it: a width of roughly 500mm provides a generous bowl area for washing your face and brushing teeth without splashing water all over the floor, while remaining slim enough to keep the bathroom feeling open.

Setting a custom mounting height

One of the best advantages of a wall-hung basin is flexibility. Unlike fixed-height floor cabinets, a floating basin can be set to the exact height that suits your family.

• Standard installation height: the industry standard height for a wash basin in Singapore is 800mm to 850mm measured from the finished floor tile to the top rim of the basin.
• Adjusting for comfort: if your household members are taller, mounting the basin slightly higher (850mm to 900mm) reduces daily back strain when leaning over. If you have young children or family members with accessibility needs, mounting closer to 800mm provides comfortable reach.

Hiding pipework: bottle traps & waste pipes

Since there is no lower cabinet to hide plumbing, the pipework beneath a wall-hung basin remains visible. Setting up clean, decorative plumbing turns a practical necessity into a sleek design feature.

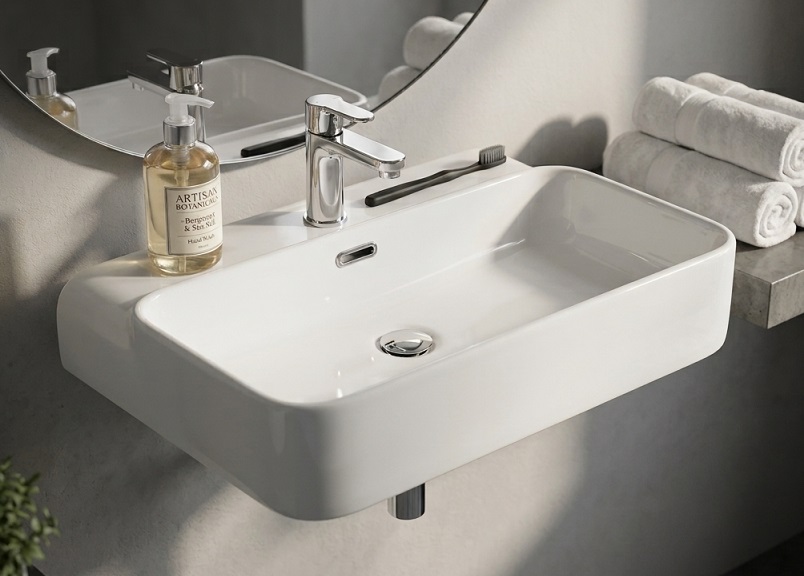

• The bottle trap: the metal or PVC cylinder directly beneath the basin drain is called a bottle trap. It holds a small water seal to block sewer odours from rising into your bathroom.
• Wall waste (P-trap): modern BTO and renovated HDB bathrooms typically route waste pipes horizontally into the wall behind the basin. Pairing a wall waste outlet with a matching chrome, matt black, or brushed brass bottle trap creates a clean, architectural finish.
• Floor waste (S-trap): if your drainage pipe drops straight into the floor tiles, your installer can fit a neat waste pipe shroud or chrome extension pipe to keep the plumbing looking tidy and modern.

Smart storage options: slim cabinets & mirrors

Choosing a wall-hung basin does not mean giving up bathroom storage. You can keep your basin area clear by shifting storage vertically up the wall:

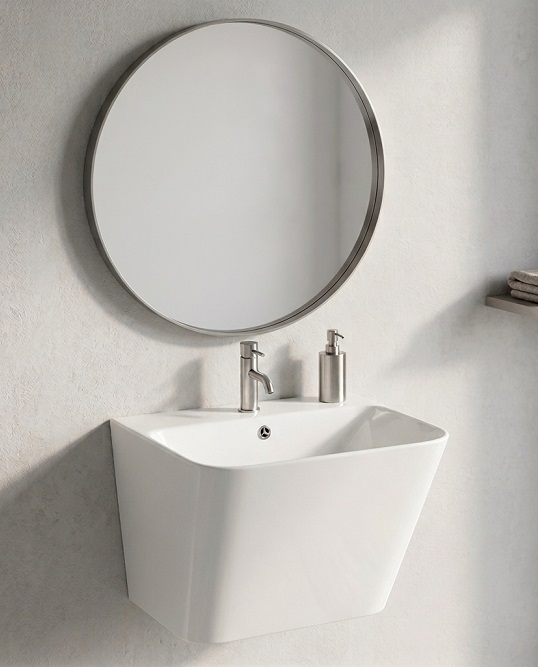

• Pair with a mirror cabinet: installing recessed or wall-mounted Mirrors & Mirror Cabinets directly above the basin provides ample eye-level storage for toothbrushes, skincare products, and shaving gear, keeping the basin area clutter-free.
• Consider a slim floating basin cabinet: if you need extra space for cleaning agents or spare toilet paper, opt for a shallow Basin Cabinet designed for wall-mounting. Compact wall-hung vanities offer the hidden storage of a cabinet while maintaining clear floor space underneath.

Frequently asked questions

Are wall-hung basins safe and sturdy enough for daily use?

Yes, when mounted correctly onto solid concrete or reinforced partition walls, wall-hung basins are completely secure and built to support everyday domestic use safely. Always ensure your installer uses heavy-duty mounting bolts designed specifically for sanitary ceramic fixtures.

How do I clean and maintain an exposed bottle trap?

Exposed bottle traps are very straightforward to clean. Metal models (such as chrome or stainless steel) can be wiped clean with a damp microfibre cloth and mild dish soap. To clear internal hair or soap buildup, simply place a bucket underneath, unscrew the bottom cap of the trap, clear the debris, and screw it back on hand-tight.

Can I replace my existing pedestal or cabinet basin with a wall-hung model in a resale HDB?

Yes, you can. However, you will need to check where the waste pipe and water supply inlets are positioned. If removing an old floor cabinet exposes un-tiled wall sections or messy pipe connections, your plumber or contractor may need to tidy up the plumbing and wall tiles before mounting the new basin.
